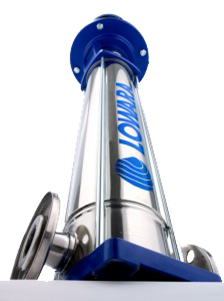

Multi Stage Pumps

resim13

Delivery : up to 160 m³/h
Head : up to 330 m
Power supply : both single and three-phase 50 and 60 Hz
Power : from 0.37 kW up to 55 kW
Maximum operating pressure : 40 bar
Temperature of pumped liquid : from -30 °C to 120 °C

Stainless Steel Vertical Multi-stage Pumps

resim16

Delivery : up to 29 m³/h
Head : up to 160 m
Power supply : both single and three-phase 50 and 60 Hz
Power : from 0.30 kW up to 5.50 kW
Maximum operating pressure : 16 bar
Temperature of pumped liquid : from -10 °C to 120 °C

Horizontal multistage centrifugal pumps

resim11

Delivery : up to 120 m³/h
Head : up to 240 m
Power supply : 50 Hz
Power : from 0.37 kW up to 30 kW
Maximum operating pressure : 25 bar
Temperature of pumped liquid : from -10 °C to 90 °C

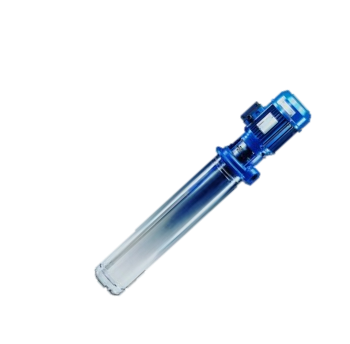

Submersible vertical electric pumps

resim14



Delivery : up to 340 m³/h
Head : up to 500 m
Power supply : three-phase 50 Hz
Power : from 2.20 kW up to 355 kW
Maximum operating pressure : 63 bar
Temperature of pumped liquid :from -10 °C to 140 °C

Vertical multistage electric pumps



resim15

Delivery : up to 14 m³/h
Head : up to 99 m
Power supply : both single andthree-phase 50 and 60 Hz
Power : from 0.30 kW up to 3 kW
Maximum operating pressure : 10 bar
Temperature of pumped liquid : from -10 °C to 90 °C

Close coupled vertical multistage pump in stainless steel
